GJL008-7.5-7.62
GJL008-7.5-7.62

Product Description:
Electrical
Standard
UL
IEC
Rated voltage
300V
750V
Rated current
15A
17A
Wire range
28-12AWG
0.2-2.5mm2
Withstanding voltage
AC3000V/1Min

Mechanical
Ambient temperature
-40°C~+105°C
Strip length
5-6mm

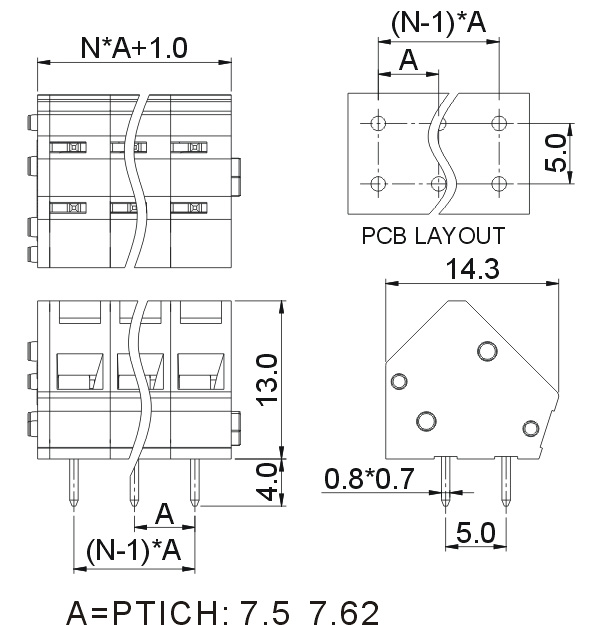

Dimensions
Pitch
7.5mm(.295") 7.62(.300")
Poles
1P-XXP

Material
Housing
PA66,UL94V-0
Pin header
Phosphor bronze,Tin plated
Wire guard
Stainless steel
