GJL005-5.0
GJL005-5.0

Product Description:
Electrical
Standard
UL
IEC
Rated voltage
300V
450V
Rated current
10A
15A
Wire range
22-16AWG
0.2-1.5mm2
Withstanding voltage
AC2500V/1Min

Mechanical
Ambient temperature
-40°C~+105°C
Strip length
10mm

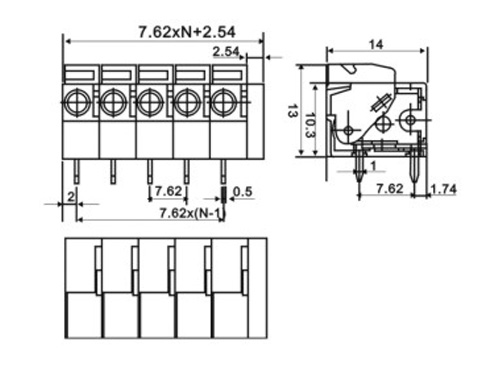

Dimensions
Pitch
7.62(.300")
Poles
1P-XXP

Material
Housing
PA66,UL94V-0
Pin header
Brass,Tin plated
Wire guard
Stainless steel
