GJL002B-2.5
GJL002B-2.5

Product Description:
Electrical
Standard
UL
IEC
Rated voltage
300V
250V
Rated current
2A
2A
Wire range
24-20AWG
0.2-0.5mm2
Withstanding voltage
AC2000V/1Min

Mechanical
Ambient temperature
-40°C~+105°C
Strip length
8.5-9.5mm

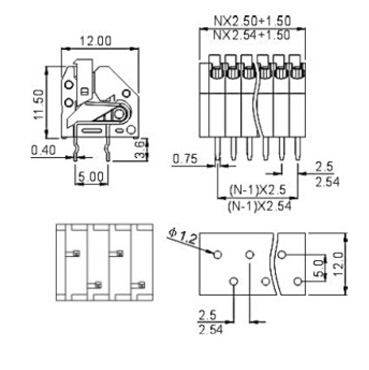

Dimensions
Pitch
2.5mm(.098")
Poles
1P-XXP

Material
Housing
PA66,UL94V-0
Pin header
Phosphor bronze,Tin plated
