Product Description:
|
|
Electrical
|
|
Standard
|
UL
|
IEC
|
|
Rated voltage
|
300V
|
250V
|
|
Rated current
|
16A
|
18A
|
|
Wire range
|
24-12AWG
|
2.5mm2
|
|
Withstanding voltage
|
AC2000V/1Min
|
|
|
|
Mechanical
|
|
Torque
|
0.4Nm(3.5Lb-In.)
|
|
Ambient temperature
|
-40°C~+105°C
|
|
Strip length
|
7mm
|
|
|
|

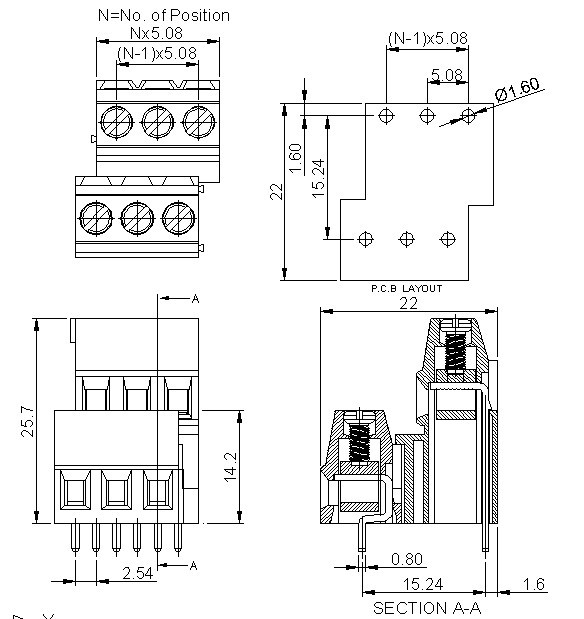

Dimensions
|
|
Pitch
|
5.0mm(.197") 5.08mm(.200")
|
|
Poles
|
3*(2P,3P-24P)
|
|
|
|
Material
|
|
Housing
|
PA66,UL94V-0
|
|
Screws
|
M2.5,steel,Cr3+ Zn plated
|
|
Pin header
|
Brass,Tin plated
|
|
Cage
|
Brass,Ni plated
|
|
|
